The self-drilling Hollow bar anchor system is comprised of a hollow threaded bar with an attached drill bit that can perform drilling, anchoring and grouting in a single operation.
The hollow bar allows air and water to freely pass through the bar during drilling to remove debris and then allow grout to be injected immediately aher drilling is completed. Grout fills the hollow bar and completely covers the entire bolt. Couplers can be used to join hollow bars and extend the bolt length while nuts and
plates are used to provide the required tension.

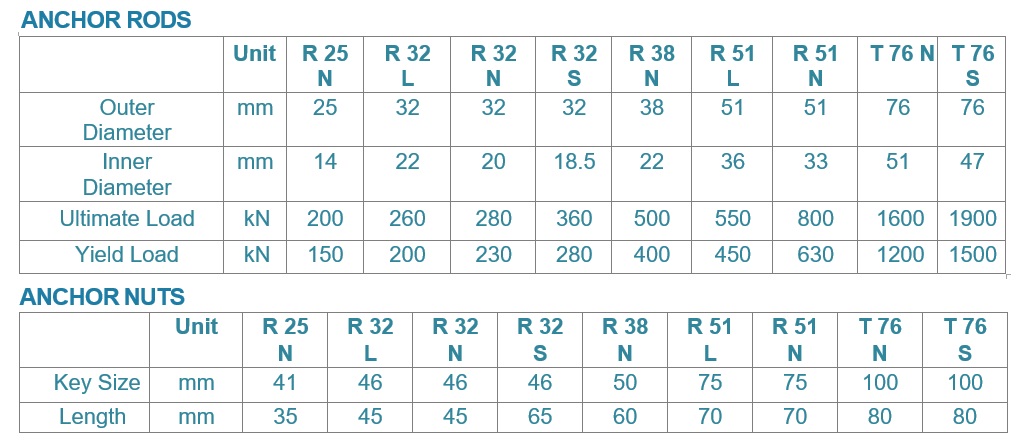

SUFI Enterprises offers Self Drilling Anchors in variants of R25, R32, R38, R51 and T76 and their accessories including the Anchor Nut, Anchor Plate, Anchor Coupler and Drilling bits depending on the geological condition of the project site (Type EX, EXX, ES, ESS, EY, EYY).
