3 in 1 concept : drilling rod, anchor bar & grouting pipe.
Suitable for both permanent and temporary applications.
Optimum bonding and load transfer
Complete solution including plate and bolts.
Splicing system to adjust to custom lengths.
Standard sacrificial drill bits for every ground conditions.
Benefits
Flexible installation : core injection to suit all ground conditions.
Safely : Visual control of full encapsulation.
One step installation with sacrificial drill bits. drilling, placing ,grouting.
No cased borehole allowing ground preservation.
Corrosion Protection
For temporary applications the corrosion protection is achieved through encapsulation with grout.
For permanent applications, SRONS Hollow Rock Bolts can be hot dip galvanized according to EN-1461, epoxy coated or supplied with a sacrificial thickness if accounted for all design stage.

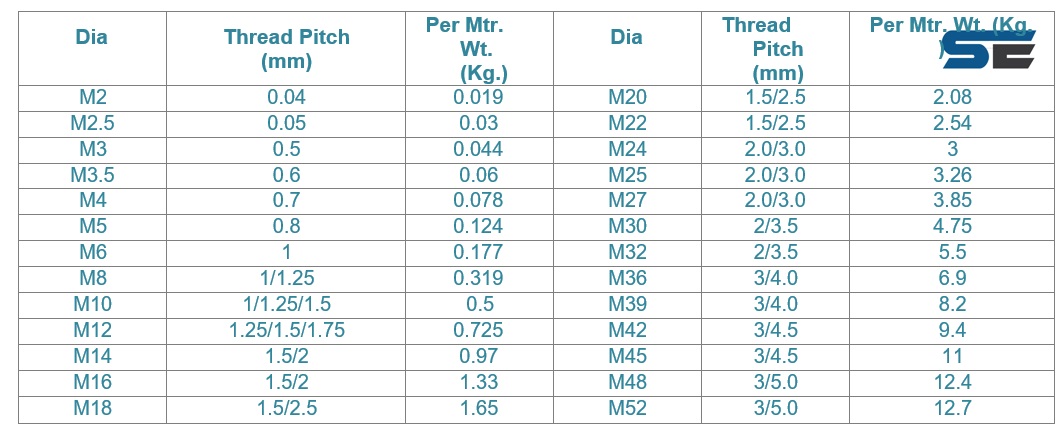

Threaded Rod/ Tie Rod
Full Threaded Bar
Product Features

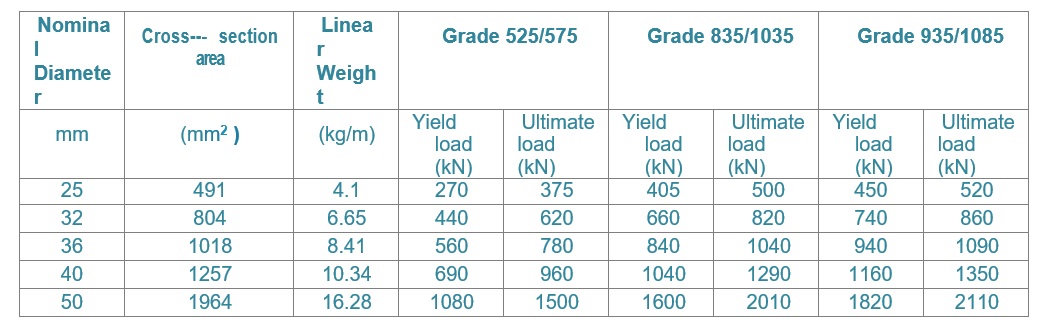

High tensile fully threaded bars available in three grades for passive and active (pre‐tensioned) anchors. Higher grades & Higher size are also available on request.
Diameter range 25 mm to 50 mm
Continuous cold rolled & hot rolled available thread.
Minimum Elongation
Gr 525/575 6%
Gr 835/1035 6%
Typical applications
Excavation tie anochoring
Slope stabilization
Structural repairing
Tunneling
Tension Piles
Mining
Benefits
Gr 935/1085 6%
Available with either leh hand or right hand threads
High grade steel effectively reduces the diameter of the bar allowing for easier handling and a smaller bore hole.
Continuous thread makes connections, possible at any point and increases bonding.
Coarse thread and surface hardening allow for rough handling.
